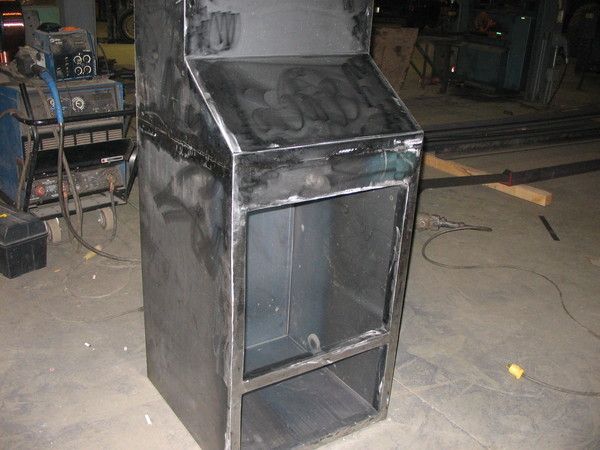

SHEET METAL FAB. - HOODS

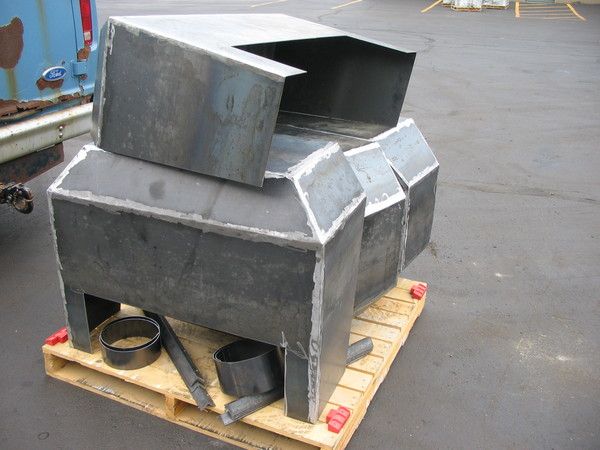

SHEET METAL FILTER BOX
MISC. SPRAYERS, MOTOR MOUNT AND MANIFOLD PARTS

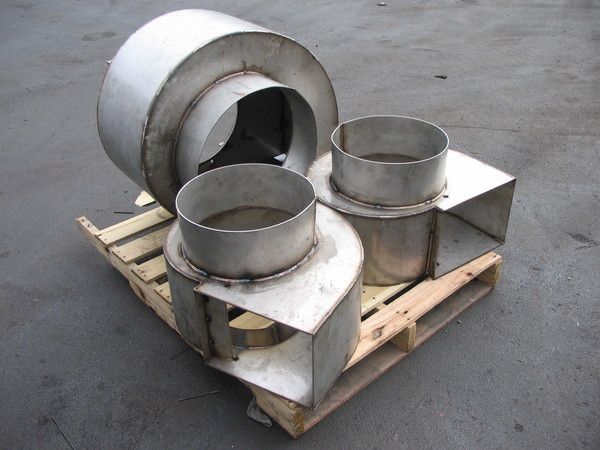

CUSTOM STAINLESS SCROLL-FAN ENCLOSURES

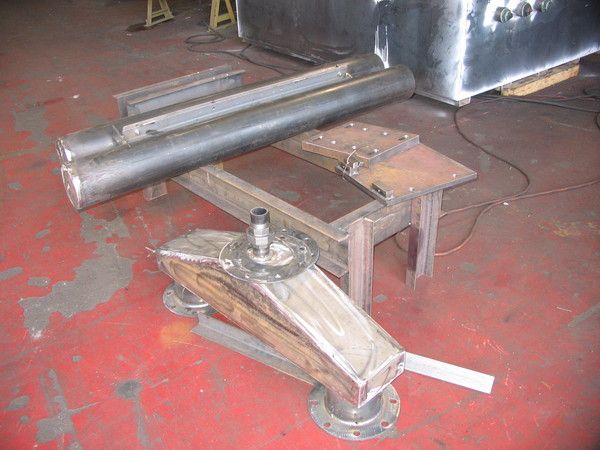

Fabricated Bearing Tube guides for Charge Cart.
Charge Cart (to be Conveyor Mounted) to load and unload parts from Quench tank elevator.
Computer controlled elevator (Inside Quench Tank) for lowering and raising parts

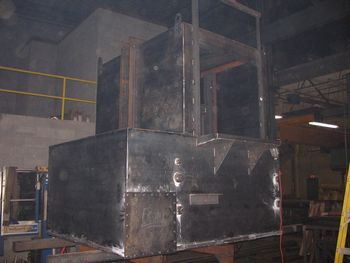

Quench Tank for Bulk-Quenching of Heat-Treated Parts - Portion of Automated Line

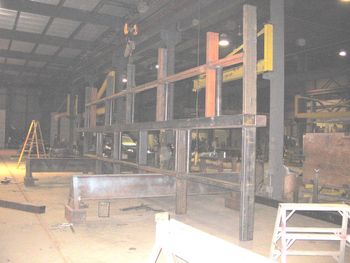

Roof Mounted 2 Stage Manifold system - Fabricated, Welded and pressure tested prior to mounting on Furnace Roof.

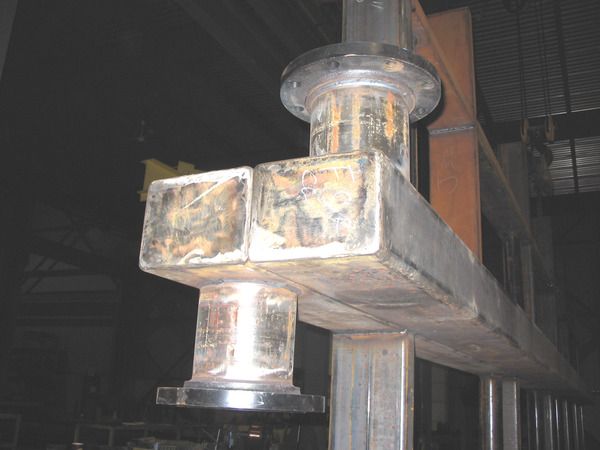

Manifold Inlet Flanges

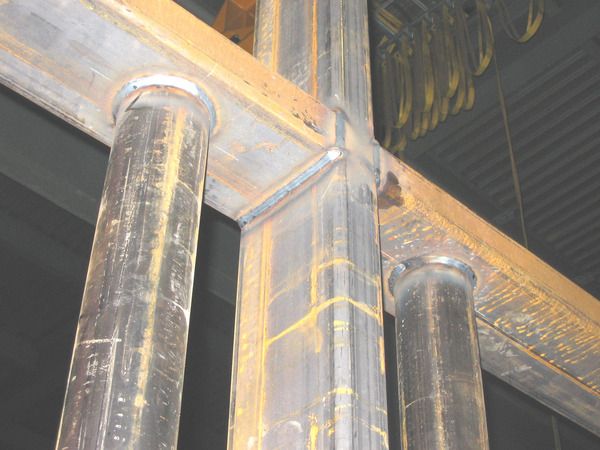

Welded Pipe and Tube Connections in Manifold.
Furnace case Ready to ship to U.S.

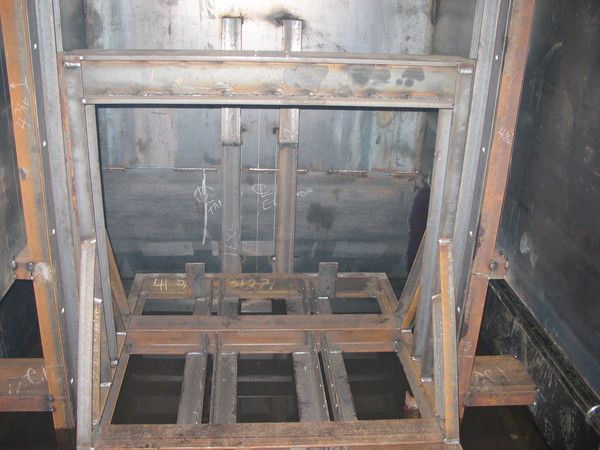

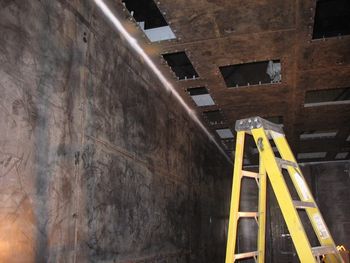

Inside Furnace Case - all seams welded continuously and leak-tested. Roof access panels shown.

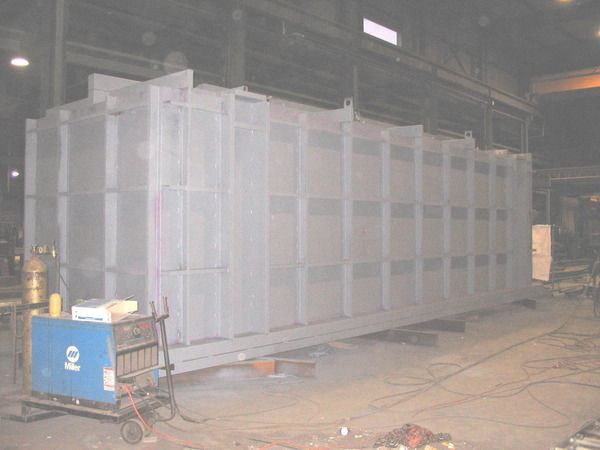

Furnace Case - Top Section shown 40'x15'x14'High. Approx weight: 39,000 lbs.

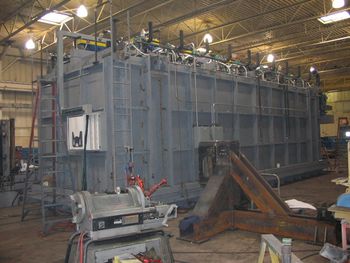

Furnace at Customer's location - Plymouth, Michigan
ALL WELDED CONNECTIONS WERE PRESSURE TESTED PRIOR TO ASSEMBLY
(2) Custom Temper-Furnace cases

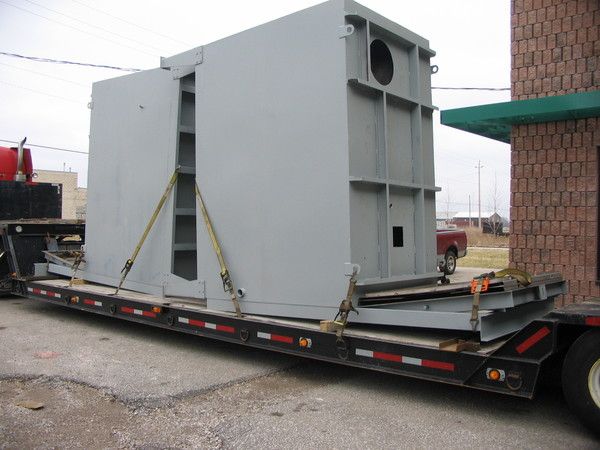

Shipped to Plymouth, Michigan
At Customer's location, Plymouth Michigan

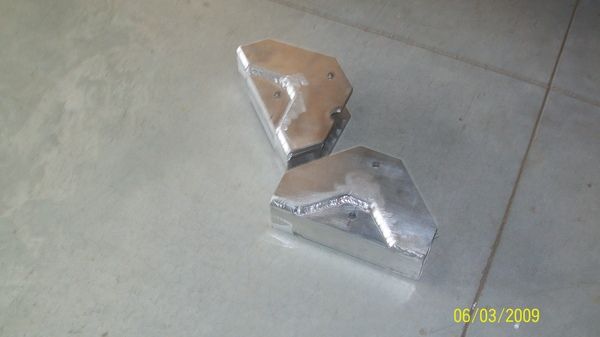

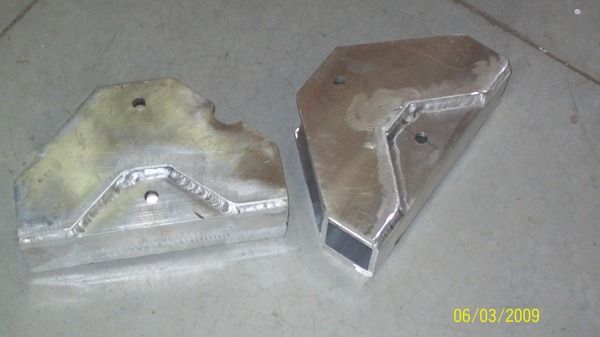

Aluminum Weldments (Extension Brackets) 6061-T6 Aluminum Welded w/ 5356 Alum. Wire ( .0312 Finished tolerances)
Aluminum Weldments (Extension Brackets) 6061-T6 Aluminum Welded w/ 5356 Alum. Wire

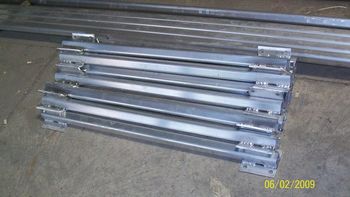

Aluminum sub-assemblies for Carts

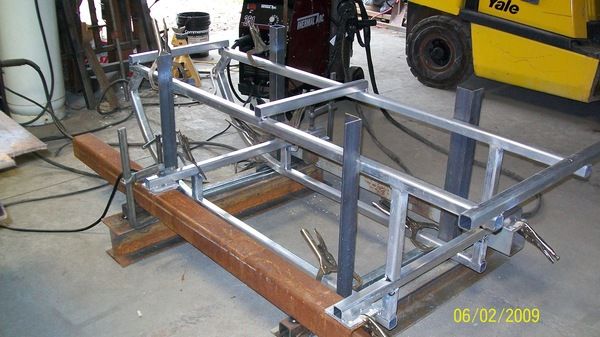

Custom Aluminum cart in fixture during fabrication process. 6061-T6 Alum. Tube Material

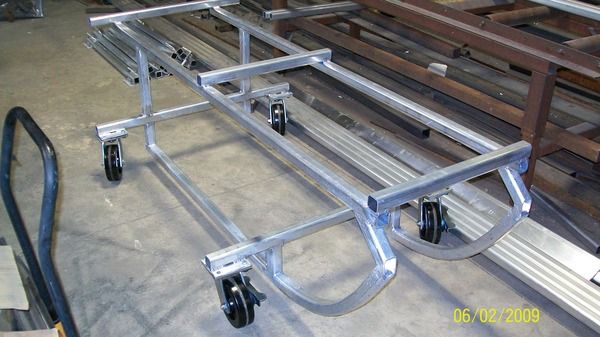

Custom Aluminum Cart

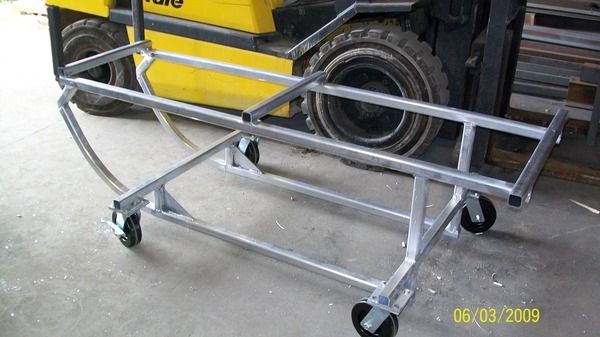

Custom Aluminum cart

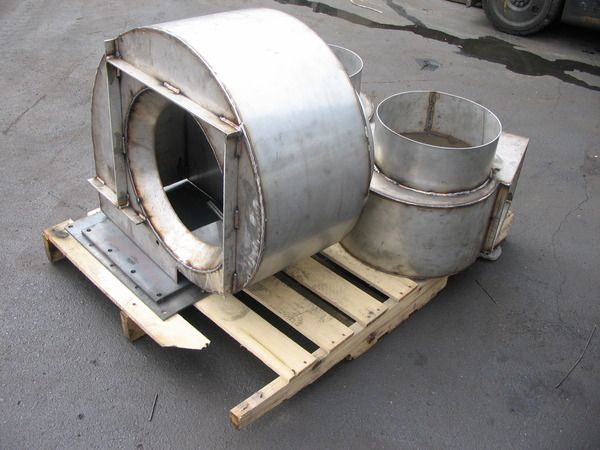

Custom Stainless Scroll-Fan Enclosures

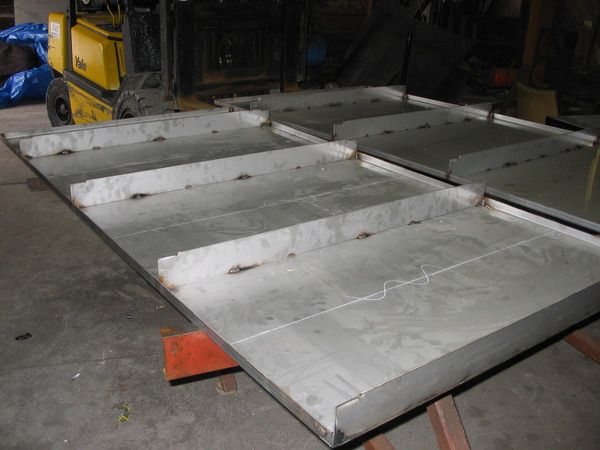

Stainless steel pans
Stainless steel slide roller pans
